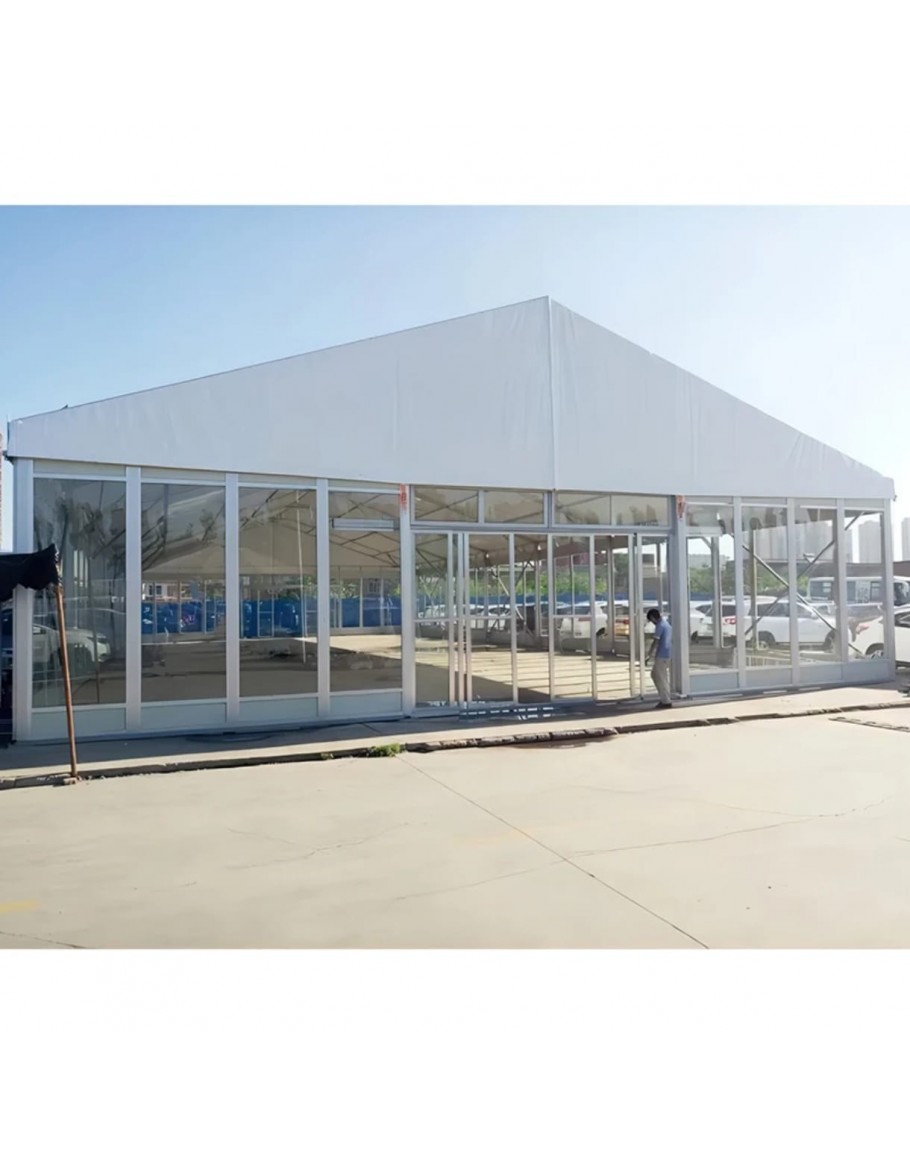

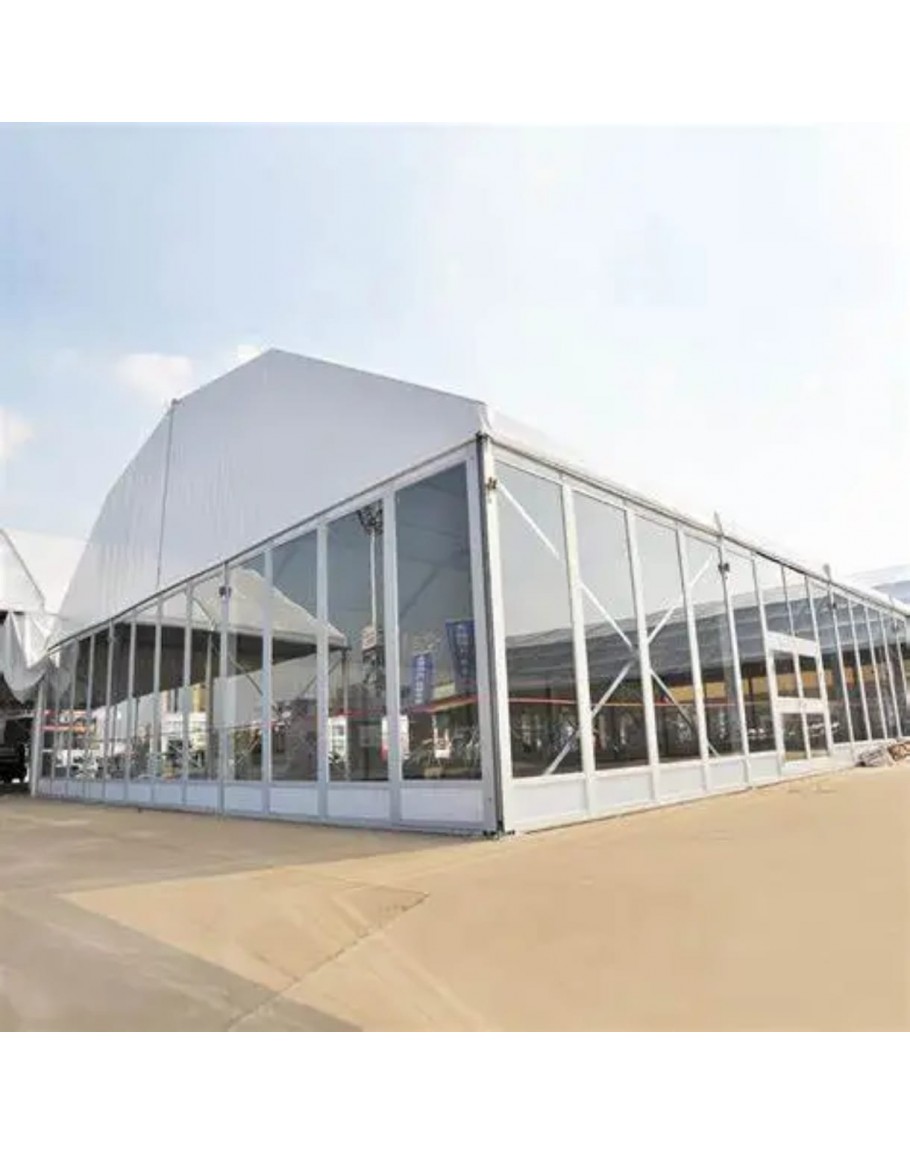

Full Glass Marquee Tent

1. Frame: 84X48X3 Aluminium profile
- Frame made out of extruded high reinforce aluminum profiles 6061/T6, anodized surface handling
- 4-channel profile to be mounted on base plates by expansion bolts
2. Size:
Size: Width 10m, Length 30m, Eave height 2.6m, Ridge height 4.4m
Bay distance: 5m
3. Roof + triangle cover:
850g opaque white PVC fabrics, water proof, mildew- proof, fire retardant (DIN4102, B1, M2), tear-resistant
4. Glass:
It is 5mm tempered glass with 50x34x2mm aluminume frame.
5. Sidewall:
650g white PVC fabrics, water proof, mildew-proof, fire retardant (DIN4102, B1, M2), tear-resistant, Up and down opening
6. Hot-dipped galvanized steel parts connections                                                                                                                                                                                                                                                                                7. Max wind speed allowance: 100-120 km/h.
8. Snow load capacity: minimum 1.9 KN/㎡.
